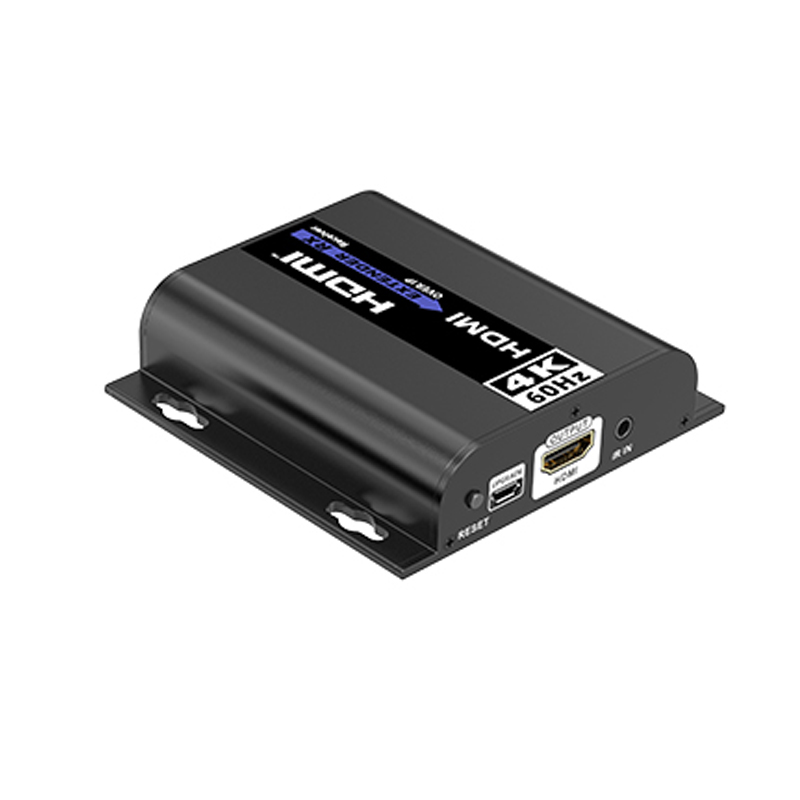

Speedex LKV483-M5.0 4K@60Hz HDMI Over IP Cat5E/Cat6 Extender up 120M/200m*, ipcolor Multimedia Management System, Matrix with APP Control, Supports one-to-one ,one-to-many, many-to-one and many-to-many connection_Receiver Unit (RX)

1. Built on ipcolor STREAM™ technology to deliver high-definition and low-latency transmission. 2. Supports up to 4096 x 2160@60Hz resolution, backwards compatible. 3. Compatible with Cat5e/6 or higher-level networking cables, transmission distance of Cat6 cable is 120 meters. 4. Supports one-to-one ,one-to-many, many-to-one and many-to-many connection through the gigabit switch. 5. Supports IR pass-back(20～60KHz). 6. Supports 256 signal source inputs and 256 signal outputs. 7. Signal sources can be switched via the APP for flexible many-to-many matrix configuration. 8. Firmware upgrading via Micro USB port. 9. Lightning protection, surge protection, ESD protection. 10. Supports stable 24/7 operation. HDMI length: ≤ 5m Maximum transfer rate: 18Gbps Compatibility: HDMI 2.0，HDCP 1.4/HDCP 2.2 Resolutions: 4096x2160@24/30/50/60Hz, 3840x2160@24/30/50/60Hz, 1080P@24/25/30/50/60Hz, 720P@50/60Hz, 576P@60Hz, 480P@60Hz, 1920x1200, 1680x1050, 1600x900, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600 Connection types: One-to-one connection One-to-many connection Many-to-one connection Many-to-many connection Switch cascading Transmission distance: CAT5 80m / CAT5E 100m / CAT6 120m Transmission latency: 1080P: 80~130ms, 4K@60Hz: 150~220ms HDMI output: LPCM 2.0 IR receiving range: ≤ 5m IR frequency: 20kHz~60kHz Power Supply: DC 5V/1A Power Consumption: TX ≤ 3.5W，RX ≤ 2.5W Working temperature: - 20℃~60℃ Storage temperature: - 30℃~70℃ Humidity: 0~90%RH (no condensation） Housing: Aluminium Weight: TX：156g，RX：154g Color: Black Dimensions: 96.8(L)*94(W)*23.7(H)mm Protection: ESD protection: 1a Contact discharge level 2 (±4KV) 1b Air discharge level 3 (±8KV) Implementation of the standard: IEC61000-4-2 Lightning protection, Surge protection APP download: iMMShttps://www.ipcolor.org/download.html

Specifications:
Warranty Warranty1 year
