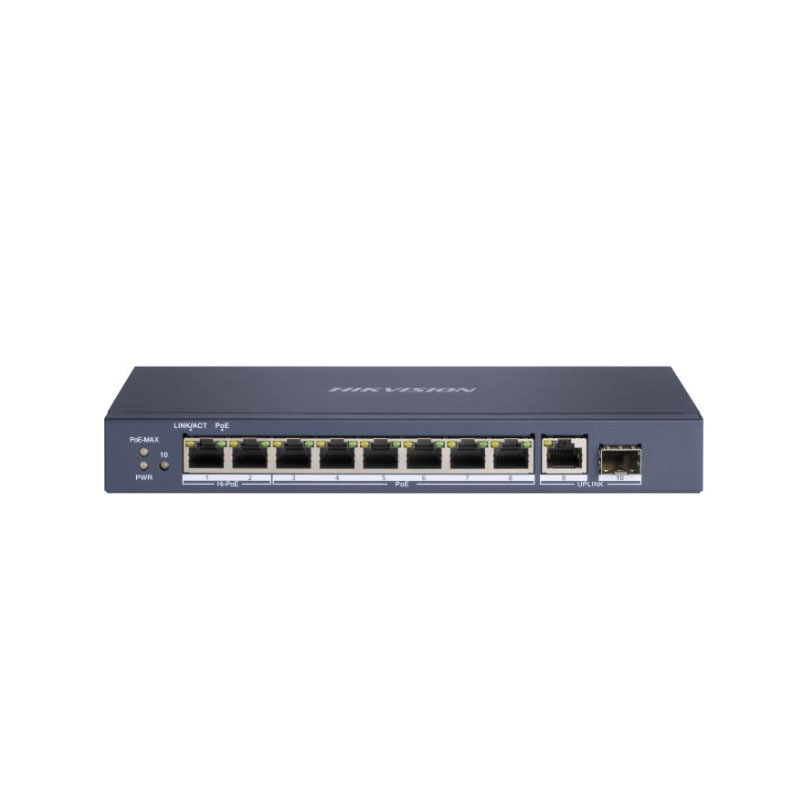

Hikvision DS-3E0510HP-E 8 Port Gigabit Unmanaged POE Switch

-6 × gigabit PoE port, 2 × gigabit Hi-PoE port, 1 × gigabit RJ45 port, and 1 × gigabit fiber optical port. -IEEE 802.3at/af/bt standard for Hi-PoE ports (Max. 90 W PoE output). -IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output). -IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard. -6 kV surge protection for PoE ports. -Up to 300 m long-range transmission. -PoE watchdog to auto detect and restart the cameras that do not respond. -Port isolation to improve network security. -Gigabit network access design. -Wire-speed forwarding. -Store-and-forward switching. -Solid high-strength metal shell. -Reliable fan-free design. General Shell Metal material, fan-free design Net Weight 0.59 kg (1.30 lb) Dimensions (W × H × D) 217.6 mm × 108.55 mm × 27.8 mm (8.57'' × 4.27'' × 1.09'') Gross Weight 0.71 kg (1.57 lb) Operating Temperature 0 °C to 40 °C (32 °F to 104 °F) Storage Temperature -40 °C to 85 °C (-40 °F to 185 °F) Operating Humidity 5% to 95% (no condensation) Relative Humidity 5% to 95% (no condensation) Power Supply 54 VDC, 2.22 A Max. Power Consumption 120 W Power Consumption in Idle 10 W Installation Mode Desk-Mounted Surge Protection 6 KV Network Parameters Ports 8 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port MAC Address Table 4 K Switching Capacity 20 Gbps Packet Forwarding Rate 14.88 Mpps Internal Cache 1.5 Mbits PoE Power Supply PoE Standard IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt PoE Power Pin 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) PoE Port Hi-PoE: Ports 1 to 2 PoE: Ports 3 to 8 Max. Port Power Ports 1 and 2: 90 W Ports 3 to 8: 30 W PoE Power Budget 110 W Dialing Function Long Range Ports 7 to 8: up to 300 m Long range performance may vary depend on camera model or cable condition. Port Isolation Ports 1 to 8: port isolation mode to improve network security. PoE Watchdog Ports 1 to 8: auto detect and restart the cameras that do not respond. Approval EMC FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015) Safety UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) Chemistry CE-RoHS (2011/65/EU)

Specifications:
Specification Features8 ports TypePoE Warranty Warranty3 Years
