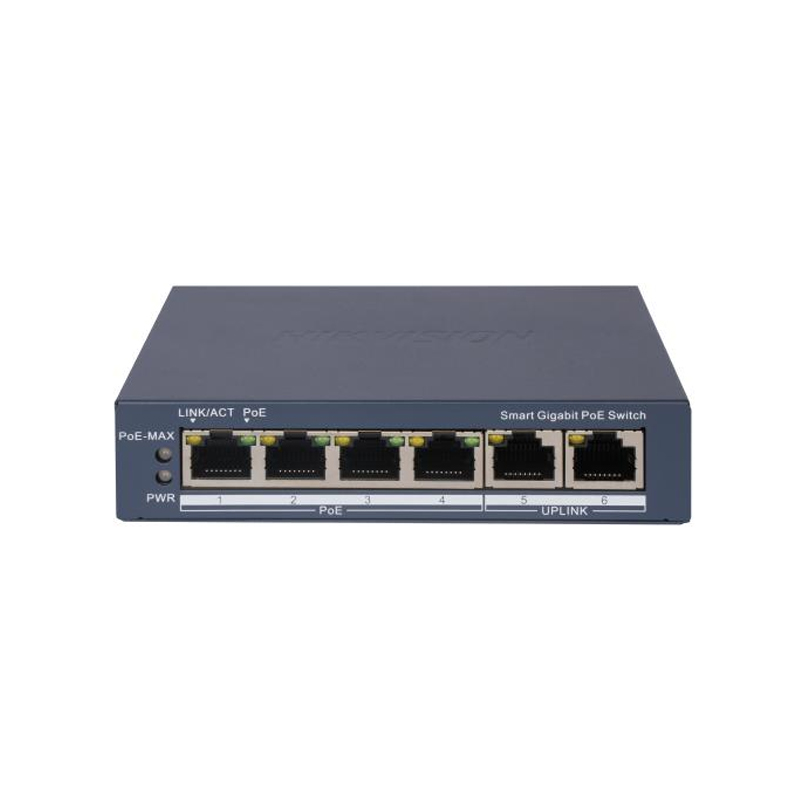

Hikvision DS-3E1506P-EI 4 Port Gigabit Smart Managed Long Range 60W POE+ Switch

-4 × Gigabit PoE port,2 × Gigabit RJ45 port -Total PoE Power Budget 60W -Support 802.1Q VLAN -Support PoE watchdog to detect and restart the cameras that do not respond -Support STP/RSTP Loop prevention -Support cable detection to locate failure -Up to 300 m Long Range PoE Transmission -6KV Surge Protection DS-3E1506P-EI Shell Metal material Net Weight 0.27 kg (0.6 lb) Gross Weight 0.77 kg (1.7 lb) Dimensions (W × H × D) 121.1 mm × 27.6 mm × 83.1 mm (4.77'' × 1.09'' × 3.27'') Operating Temperature 0 °C to 40 °C (32 °F to 104 °F) Storage Temperature –40 °C to 85 °C (–40 °F to 185 °F) Operating Humidity 5% to 95% (no condensation) Relative Humidity 5% to 95% (no condensation) Power Supply 54VDC, 1.2A Max. Power Consumption 65W Power Consumption in Idle 1.6 W Installation Mode Desk-Mounted,Wall-Mounted Surge Protection 6 KV Network Parameters Ports 4 × Gigabit PoE port,2 × Gigabit RJ45 port MAC Address Table 2 K Switching Capacity 14 Gbps Packet Forwarding Rate 10.42 Mpps Internal Cache 1 Mbits PoE Power Supply PoE Standard IEEE 802.3af;IEEE 802.3at PoE Power Pin End-span: 1/2(-), 3/6(+) PoE Port PoE: Ports 1 to 4 Max. Port Power 30W PoE Power Budget 60W Software Function Long Range Ports 1 to 4: up to 300 m. Long range performance may vary depend on camera model or cable condition. Port Isolation Ports 1 to 4: port isolation mode to improve network security Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group. PoE Watchdog Ports 1 to 4: auto detect and restart the cameras that do not respond. Link Aggregation Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. Support static link aggregation. Support 2 aggregation groups. Loop Prevention Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP. Suppport 802.1w RSTP. VLAN VLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 32 VLAN. HPP Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display the PoE power usage. 4. Display topology information. 5. Display the alarm status. 6. Restart ports and devices. 7. Enable port long-rage mode. 8. Remotely upgrade the device. System Maintenance Support device management via web. Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. Support Super IP, which is a fixed IP address (10.180.190.200) for direct access. Support management via Hik-Central Pro. Support remote management via Hik-Partner Pro. Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected. Suppo
