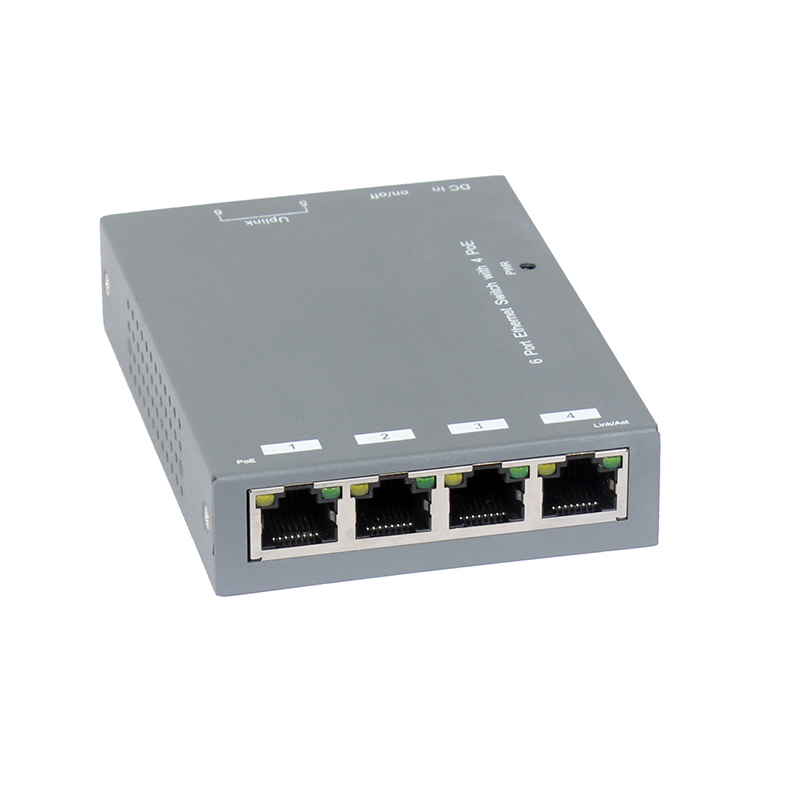

Speedex 6 Ports Switch with 4 Ports 10/100Mbps POE+ and 2 Port Gigabit 60W Switch

Fixed port: 6 10/100Base-TX ports.
LED Indicators: PWR, PoE, Link/Act LED.
Input voltage: 100V～240V AC，50/60Hz (for power adapter)48VDC (for PoE switch)
Power consumption: TOTAL 65W(61.6W for PoE)
Operatingtemperature: 0℃～40℃.
Storage temperature: -10℃～70℃.
Relative humidity: 20%～85% (non-condensing).
Thermal methods: Fanless.
Switching capacity: 1.2G.
MAC address table: 4K
CCTV mode(Port Isolation): Support
200Meters with10mbps: Support
Traffic control: IEEE 802.3x full-duplex flow control.
Size: 101.5mm x 75.2mm x 22.5mm
PoE port: 4 10/100Base-TX ports.
PoE Standard: IEE802.3af, IEEE802.3at, per port 30W(MAX)Total 65W
Pin assignment: V+ (RJ45 Pin 1, 2), V- (RJ45 Pin 3, 6)
Features: 4 ports
Type: PoE
Warranty
Warranty: 1 Year
