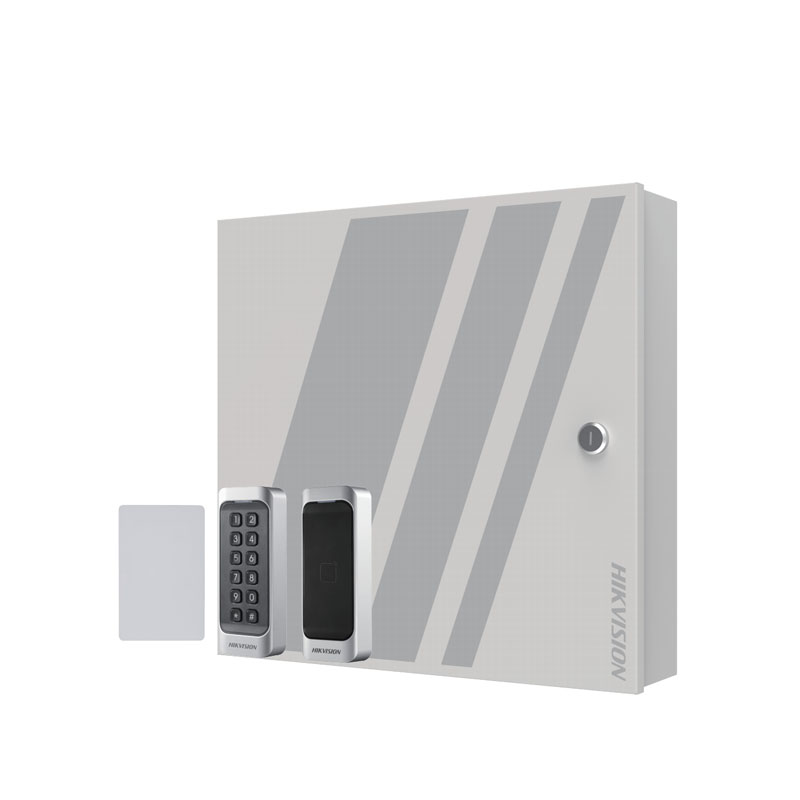

Hikvision DS-K2704-KIT 4-door management Ultra Series access controller
Log in to view MSRP and wholesale pricing.
Description
Operating system: Linux
Wired network: 1, 10/100/1000 Mbps self-adaptive
Network interface: 1
Lock control: 4
Exit button: 4
Door contact input: 4
Alarm input: 8
Alarm output: 4
TAMPER: 1
RS-485: 7, 2 for card reader, 5 for access modules (4 for communication, each interface can connect up to 16 access modules; 1 for redundancy)
Wiegand: 4, standard 26/34 input, supports custom Wiegand settings
USB: 1, USB 2.0
Fire interface: 1
User capacity: 100,000
Fingerprint capacity: 10,000
Card capacity: 200,000
Event capacity: 600,000
Linked door capacity: Self: 4 doorsExtended: up to 128 doors (connected with 62 access modules)
Linked card reader capaciry: 8 RS-485 card readers (OSDP protocol) and 4 Wiegand card readers
Fingerprint recognition duration: ＜ 1 s
Indicator: 12 indicators, 1 for indicating power status, 1 for running status, 1 for wired network status, 5 for RS-485 status, and 4 for door status
Battery: Charge and discharge
Power supply: 100 VAC to 240 VAC
Power consumption: ≤ 102 W
Working temperature: -10 °C to 55 °C (14 °F to 131 ° F)
Working humidity: 0% to 90% (No condensing)
Installation: Wall mounting
Language: English, Thai, Traditional Chinese, Indonesian, Vietnamese, Arabic, Spanish (Europe), Spanish (South America), Italian, French, Dutch, Russian, Ukrainian, Portuguese (Europe), Portuguese (Brazil), Serbian, Croatian, Bulgarian, German, Greek, Romanian
Configuration via Web browser: Support
Multi-factor authentication: Support
First person in: Support
Anti-passback: Support 32 routes (64 card readers each)
Multi-door interlocking: Support 32 groups (32 doors each)
Warranty
Warranty: 3 Years
