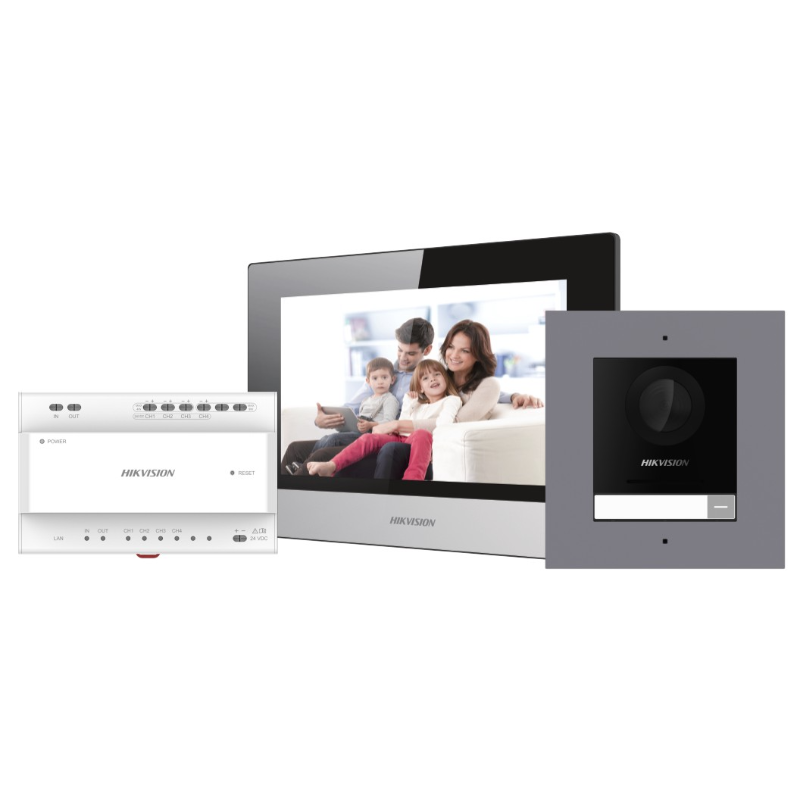

Hikvision DS-KIS702Y-P Villa Two Wire Kit

-2-wire digital IP video intercom bundle for villa or house -One call button for easier calls -Including: DS-KD8003Y-IME2/Surface × 1, DS-KH6320Y-WTE2 × 1, DS-KAD704Y × 1, PSU × 1, 16GB TF card × 1 -Power adapter included in the package Door station/System parameters Processor Embedded microcontroller Operation system Embedded Linux operation system Operation mode One touch key Door station/Video parameters Camera 2MP super definition camera Resolution Main stream: 1920 × 1080, (720p configurable); sub stream: 720 × 480 Night vision Support low light and IR light supplement mode Backlight compensation Support Digital noise reduction Support WDR True WDR Field of view Horizontal 146°, vertical 82° Video Compression Standard H.264 Stream Main stream: 1080p@30fps, 720p@30fps (configurable); sub stream: D1 Motion detection Support Flash-avoid frequency 50 Hz, 60 Hz Door station/Audio parameters Audio input Built-in omnidirectional microphone Audio output Loudspeaker, 20 cm sound effect > 80 db Audio quality Noise suppression and echo cancellation Audio compression standard G.711 U Audio compression Rate 64 Kbps Audio intercom Full-duplex two-way audio intercom Door station/Network parameters Network Protocol TCP/IP, RTSP, IPV6, ONVIF Door station/Device interfaces Debugging port 1 RS-485 1 (1 for Hikvision's sub module communication) Alarm input 4 (2 exit butttons and 2 door contacts by default) Lock control 2 (2 relay, max to 30 VDC, 2 A) TAMPER switch 1 Power interface Two-wire Door station/General Working temperature -40 °C to 60 °C (-40 °F to 140 °F) Working humidity 10% to 90% Dimension 100 mm × 98 mm × 42 mm (3.94" × 7.8\" × 1.65) " Installation Wall mounting Protection level IP 65 Button 1 Power input Powered by KAD704Y or KAD706Y series distributor Indoor station/System parameters Operation system Embedded Linux operation system Memory 128 MB Flash 32 MB Indoor station/Display parameters Display screen 7-inch TFT LCD Display resolution 1024 × 600 Operation method Capacitive touch Indoor station/Audio parameters Audio input Built-in omnidirectional microphone Audio output Built-in loudspeaker Audio quality Noise suppression and echo cancellation Volume Local or software control Audio compression standard G.711 U, G.711 A Audio compression Rate 64 Kbps Indoor station/Network parameters Wired network Two-wire network Wireless network Wi-Fi 802.11b/g/n Protocol TCP/IP, SIP, RTSP Indoor station/Device interfaces Network interface Two-wire interface RS-485 1 Alarm input 8 zones alarm input Relay output 2（30 V Max.） TF card Support, Max. 128 GB Indoor station/General Power supply Powered by KAD704Y or KAD706Y distributor Power consumption ≤ 4 W Working temperature -10 °C to 50 °C (14 °F to 122 °F) Working humidity 10% to 90% Dimensions (W × H × D) 200 mm × 140 mm × 23.6 mm (7.87" × 5.51 × 0.93\")" Video Audio Distributor/Interfaces Network interface 1 RJ45 Two-wire interface 6 (2 for cascading and 4 for devices) Signal indicator 6 Power indicator 1
