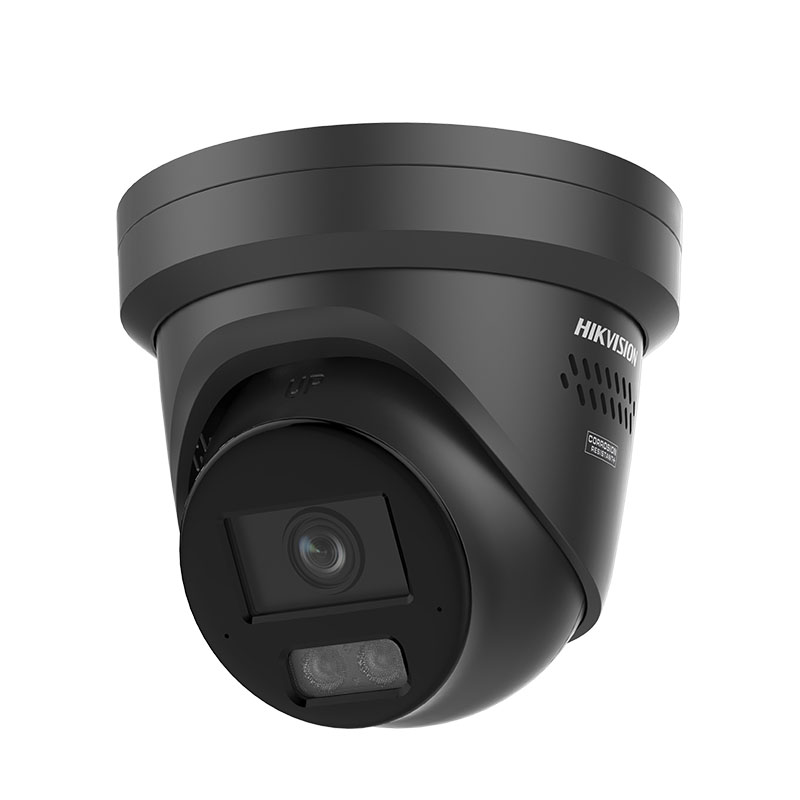

Hikvision DS-2CD2347G3-LIS2UY/SL 4MP Smart Hybrid White Strobe Light with Siren ColorVu 3.0 Turret Fixed Lens IP Camera
Log in to view MSRP and wholesale pricing.
Description
Image Sensor: 1/1.8" Progressive Scan CMOS
Max. Resolution: 2688 × 1520
Min. Illumination: Color: 0.0001 Lux @ (F1.0, AGC ON),0 Lux with light
Shutter Time: 1 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
Lens Type: Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV: 2.8 mm, horizontal FOV 111.1°, vertical FOV 57.6°, diagonal FOV 138.5°4 mm, horizontal FOV 95.2°, vertical FOV 48.3°, diagonal FOV 117.4°
Lens Mount: M16
Iris Type: Fixed
Aperture: F1.0
Depth of Field: 2.8 mm: 2.5 m to ∞4 mm: 3.1 m to ∞
DORI
DORI: 2.8 mm: D: 61 m, O: 24 m, R: 12 m, I: 6 m4 mm: D: 75 m, O: 30 m, R: 15 m, I: 7 m
Supplement Light Type: White Light,IR
Supplement Light Range: Up to 30 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm
Main Stream: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)*The third stream is supported under certain settings.
Video Compression: Main stream: H.265/H.264/H.264+/H.265+,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264,*Third stream is supported under certain settings.
Video Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline Profile,Main Profile,High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR,VBR
Scalable Video Coding (SVC): H.264 and H.265 encoding
Region of Interest (ROI): 1 fixed region for main stream
Audio Type: Mono sound
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering: Yes
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live View: Up to 6 channels
API: ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/Host: Up to 32 users3 user levels: administrator, operator, and user
Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
Client: iVMS-4200,Hik-Connect,Hik-Central
Web Browser: Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+,Local service: Chrome 80+, Firefox 80+, Edge 89+
Image Parameters Switch: Yes
Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switch: Day,Night,Auto,Schedule
Image Enhancement: BLC,HLC,3D DNR,Distortion Correction,Defog
SNR: ≥ 52 dB
Wide Dynamic Range (WDR): 130 dB
Image Stabilization: EIS
Privacy Mask: 4 programmable polygon privacy masks
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Speaker: Max. power consumption: 2 W, max. sound pressure level: 10 cm: 110 dB.
Audio: Built-in Microphone: Arrayed dual-microphone1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm: 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Reset Key: Yes
Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Smart Event: Scene change detection
Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,strobe light flashing
Face Capture: Yes
Perimeter Protection: Line crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)
Power: 12 VDC ± 25%, 1.29 A, max. 15.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,PoE: IEEE 802.3at, Class 4, max. 17 W
Material: Cover: metal, main body: metal
Dimension: Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5")
Package Dimension: 170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")
Weight: Approx. 820 g (1.8 lb.)
With Package Weight: Approx. 1200 g (2.6 lb.)
Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function: Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Flashing Light: /SRB model: Red and Blue Light/SL model: White Light
EMC: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,RCM: AS/NZS CISPR 32: 2015,IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015
Safety: UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017
Environment: CE-RoHS: 2011/65/EU
Protection: IP67: IEC 60529-2013
Anti-Corrosion Protection: NEMA 4X (NEMA 250-2018)
Type: 4 MP
Warranty
Warranty: 3 Years
