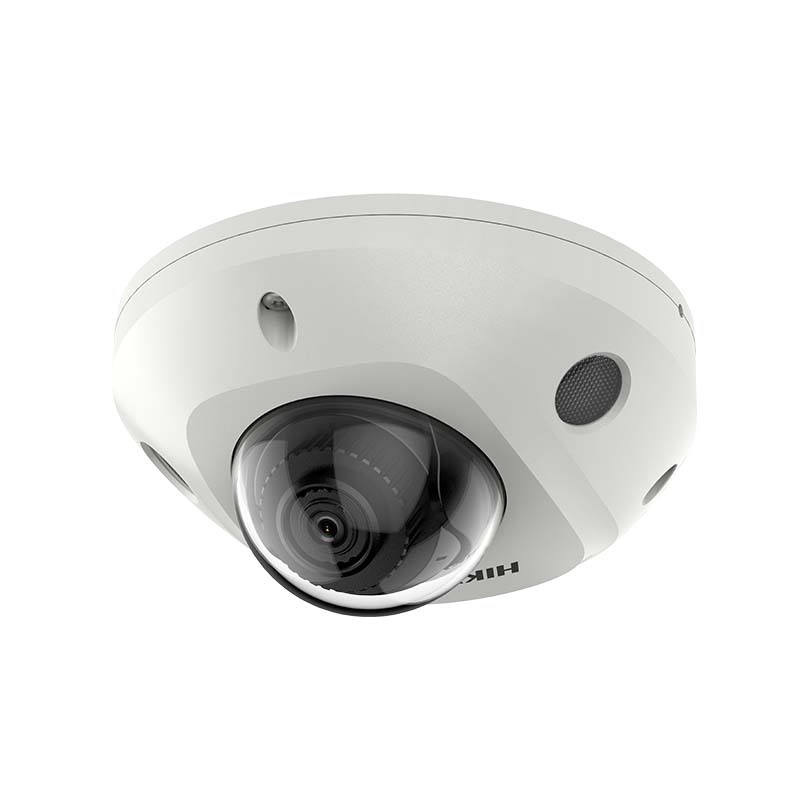

Hikvision DS-2CD2543G2-IWS 4MP AcuSense Built-in Mic Fixed Mini Dome Network Camera
Log in to view MSRP and wholesale pricing.
Description
Image Sensor: 1/3" Progressive Scan CMOS
Max. Resolution: 2688 x 1520
Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: -30deg to 30deg, tilt: 0deg to 75deg, rotate: 0deg to 360deg
Lens Type: Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV: 2 mm, horizontal FOV 128deg, vertical FOV 75deg, diagonal FOV 147deg2.8 mm, horizontal FOV 104.3deg, vertical FOV 55.9deg, diagonal FOV 123.8deg4 mm, horizontal FOV 83.7deg, vertical FOV 43.0deg, diagonal FOV 100.3deg
Lens Mount: M12
Iris Type: Fixed
Aperture: F1.6
Depth of Field: 2 mm: 0.6 m to 2.8 mm: 1.4 m to 4 mm: 1.6 m to
DORI
DORI: 2 mm, D: 45 m, O: 18 m, R: 9 m, I: 4 m2.8 mm: D: 64 m, O: 25 m, R: 13 m, I: 6 m4 mm: D: 85 m, O: 34 m, R: 17 m, I: 9 m
Supplement Light Type: IR
Supplement Light Range: Up to 30 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm
Main Stream: 50 Hz: 25 fps (2688 x 1520, 1920 x 1080, 1280 x 720)60 Hz: 30 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
Sub-Stream: 50 Hz: 25 fps (1280 x 720, 640 x 480, 640 x 360)60 Hz: 30 fps (1280 x 720, 640 x 480, 640 x 360)
Third Stream: 50 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)60 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)*Third stream is supported under certain settings.
Video Compression: Main stream: H.265/H.264/H.265+/H.264+Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264*Third stream is supported under certain settings.
Video Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline Profile/Main Profile/High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR/VBR
Scalable Video Coding (SVC): H.264 and H.265 encoding
Region of Interest (ROI): 1 fixed region for main stream and sub-stream
Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/8-320 Kbps (MP3)/16-64 Kbps (AAC-LC)
Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering: Yes
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X (except for -W model), QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
Simultaneous Live View: Up to 6 channels
API: Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
User/Host: Up to 32 users. 3 user levels: administrator, operator and user
Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client: iVMS-4200, Hik-Connect, Hik-Central*Wi-Fi connection with Hik-Connect directly is not possible.
Web Browser: Plug-in required live view: IE 10, IE 11Plug-in free live view : Chrome 57.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+
Encryption Mode: -W: 64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSK
Wi-Fi Protocol: -W:802.11b: CCK, QPSK, BPSK802.11g/n: OFDM
Frequency Range: -W: 2.4 GHz to 2.4835 GHz
Channel Bandwidth: -W: 20/40 MHz
Modulation: -W:802.11b: CCK, QPSK, BPSK802.11g/n: OFDM
Transfer Rate: -W:802.11b: 11 Mbps802.11g: 54 Mbps802.11n: up to 300 Mbps
Wireless Range: -W: Up to 80 m (The performance varies based on actual environment)
Image Parameters Switch: Yes
Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch: Day, Night, Auto, Schedule
Wide Dynamic Range (WDR): 120 dB
SNR: >= 52 dB
Image Enhancement: BLC, HLC, 3D DNR
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in memory card slot, support microSD card, up to 512 GB
Built-in Microphone: Yes
Audio: -IS/IWS:1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KO, interface type: non-equilibrium1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 O, interface type: non-equilibrium
Alarm: -IS/IWS:1 input, 1 output (max. 12 VDC, 20 mA)
Reset Key: Yes
Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event: Line crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle))Face detection
Linkage: Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email
Power: -IS:12 VDC +- 25%, 0.45 A, max. 5.5 W, O5.5 mm coaxial power plug, reverse polarity protectionPoE: 802.3af, Class 3, 36 V to 57 V, 0.18 A to 0.11 A, max. 6.5 W-IWS:12 VDC +- 25%, 0.5 A, max. 6 W, O5.5 mm coaxial power plug, reverse polarity protectionPoE: 802.3af, Class 3, 36 V to 57 V, 0.19 A to 0.12 A, max. 7 W
Dimension: O110 mm x 57.4 mm (O 4.3" x 2.3")
Package Dimension: 134 mm x 134 mm x 108 mm (5.3" x 5.3" x 4.3")
Weight: Approx. 380 g (0.8 lb.)
With Package Weight: Approx. 615 g (1.4 lb.)
Storage Conditions: -30 degC to 60 degC (-22 degF to 140 degF). Humidity 95% or less (non-condensing)
Startup and Operating Conditions: -30 degC to 60 degC (-22 degF to 140 degF). Humidity 95% or less (non-condensing)
Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function: Anti-flicker, heartbeat, password reset via email, pixel counter
RF: -W:FCC ID (FCC Part 15.247(BT or 2.4G));CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G))
EMC: FCC (47 CFR Part 15, Subpart B)CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)RCM (AS/NZS CISPR 32: 2015)IC (ICES-003: Issue 7)KC (KN32: 2015, KN35: 2015)
Safety: UL (UL 62368-1)CB (IEC 62368-1: 2014+A11)CE-LVD (EN 62368-1: 2014/A11: 2017)
Environment: CE-RoHS (2011/65/EU)WEEE (2012/19/EU)Reach (Regulation (EC) No 1907/2006)
Protection: IP67 (IEC 60529-2013)IK8 (IEC 62262:2002)
Type: 4 MP
Warranty
Warranty: 3 Years
