Hikvision

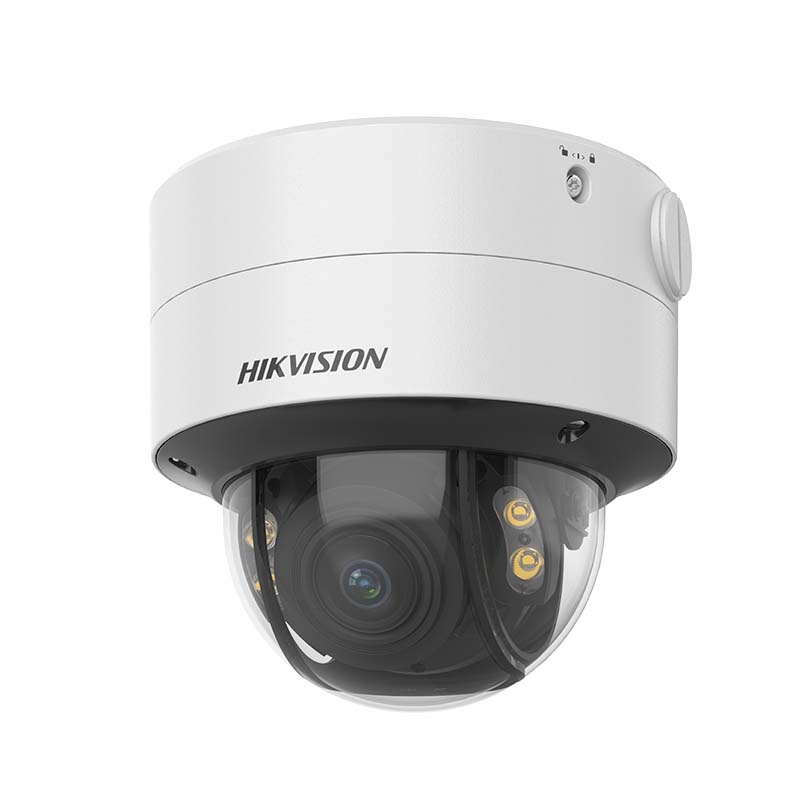

Hikvision DS-2CD2747G2-LZS 4MP ColorVu 3.6-9mm Motorized Varifocal Dome Network Camera
Log in to view MSRP and wholesale pricing.
Description
Image Sensor: 1/1.8" Progressive Scan CMOS
Max. Resolution: 2688 × 1520
Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time: 1/3 s to 1/100,000 s
Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Lens Type: Varifocal lens, motorized lens, 3.6 to 9 mm
Focal Length & FOV: 3.6 to 9 mm, horizontal FOV 92.3° to 48°, vertical FOV 48.4° to 27°, diagonal FOV 112.2° to 55°
Lens Mount: Ø20
Iris Type: Fixed
Aperture: F1.0
DORI
DORI: D: 69 m to 124 m, O: 27.4 m to 49.3 m, R: 13.8 m to 24.8 m, I: 6.9 m to 12.4 m
Supplement Light Type: White Light
Supplement Light Range: Up to 40 m
Smart Supplement Light: Yes
Main Stream: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)*Third stream is supported under certain settings.
Video Compression: Main stream: H.265/H.264/H.265+/H.264+Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264*Third stream is supported under certain settings.
Video Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline Profile/Main Profile/High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR/VBR
Scalable Video Coding (SVC): H.265 and H.264 encoding
Region of Interest (ROI): 1 fixed region for main stream and sub-stream
Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering: Yes
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
Simultaneous Live View: Up to 6 channels
API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
User/Host: Up to 32 users. 3 user levels: administrator, operator and user
Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)Together with high-end Hikvision memory card, memory card encryption and health detection are supported
Client: iVMS-4200, Hik-Connect, Hik-Central
Web Browser: Plug-in required live view: IE 10, IE 11Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch: Yes
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch: Auto, Schedule
Wide Dynamic Range (WDR): 130 dB
SNR: ≥ 52 dB
Image Enhancement: BLC, HLC, 3D DNR
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Audio: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm: 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Reset Key: Yes
Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle))Scene change detection
Linkage: Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email
Face Capture: Yes
Power: 12 VDC ± 25%, 0.9 A, max. 10.8 W, Ø5.5 mm coaxial power plugPoE: 802.3af, Class 3, 36 V to 57 V, 0.36 A to 0.23 A, max. 12.9 W
Dimension: Ø155 mm × 152 mm (Ø6.1" × 6.0")
Package Dimension: 227 mm × 198 mm × 220 mm (8.9" × 7.8" × 8.7")
With Package Weight: Approx. 2109 g (4.6 lb.)
Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language: 33 languagesEnglish, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function: Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
EMC: FCC SDoC (47 CFR Part 15, Subpart B);CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);RCM (AS/NZS CISPR 32: 2015);IC VoC (ICES-003: Issue 6, 2016);KC (KN 32: 2015, KN 35: 2015)
Safety: UL (UL 60950-1);CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);LOA (IEC/EN 60950-1)
Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU);Reach (Regulation (EC) No 1907/2006)
Protection: IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
Type: 4 MP
Warranty
Warranty: 3 Years
