Hikvision

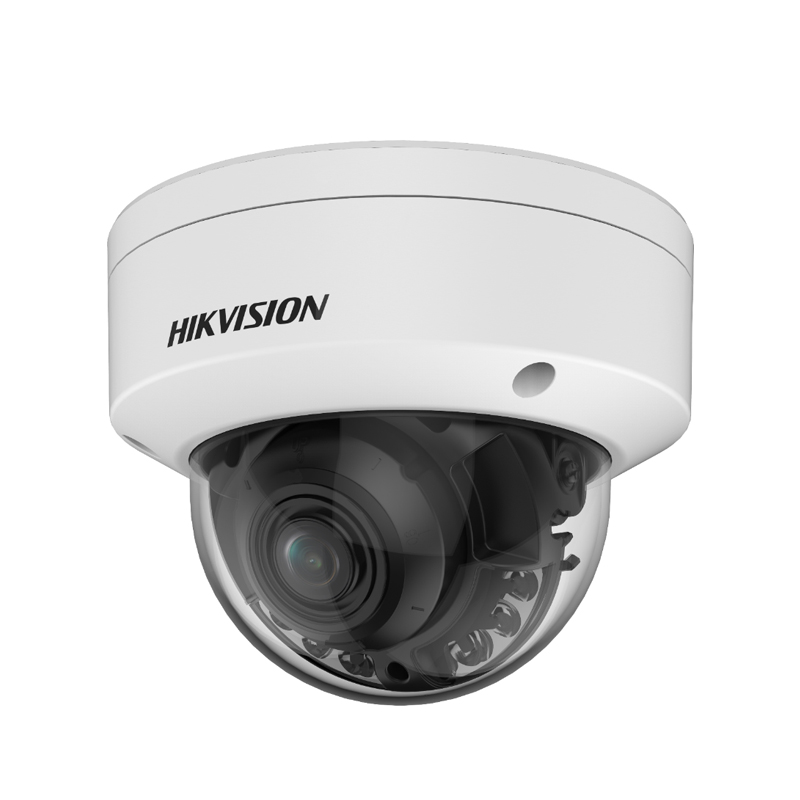

Hikvision DS-2CD3746G2HT-LIZSU 4MP Darkfighter S 2.7-13.5mm Motorized Dome IP Cam
Log in to view MSRP and wholesale pricing.
Description
Image Sensor: 1/1.8" Progressive Scan CMOS
Max. Resolution: 2688 × 1520
Min. Illumination: Color: 0.001 Lux @ (F1.2, AGC ON),0 Lux with light
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
Lens Type: Varifocal lens, motorized lens, 2.7 to 13.5 mm
Focal Length & FOV: 2.7 to 13.5 mm, horizontal FOV 114.6° to 41.8°, vertical FOV 59.3° to 23.6°, diagonal FOV 141.3° to 48.1°
Lens Mount: Integrated
Focus: Auto,Semi-auto,Manual
Iris Type: DC iris
Aperture: Max. F1.2
Depth of Field: 1 m to ∞
DORI
DORI: Wide: D: 60.0m, O: 23.8 m, R: 12.0 m, I: 6.0 mTele: D: 149 m, O: 59.1 m, R: 29.8 m, I: 14.9 m
Supplement Light Type: IR,White Light
Supplement Light Range: Up to 40 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm
HEOP
Open Resources: Memory: 60 MB,Smart RAM: 400 MB,eMMC: 2 GB
Computing Power: 1.5 TOPS
Open Capability: HEOP 2.0 OpendevSDK
Deep Learning Structure: Caffe, PyTorch, TensorFlow, PaddlePaddle, ONNX
Programming Language: C,C++
Main Stream: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)*Third stream is supported under certain settings.
Fourth Stream: 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)*Fourth stream is supported under certain settings.
Video Compression: Main stream: H.265/H.264/H.264+/H.265+,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264,Fourth stream: H.265/H.264/MJPEG,*Third stream and fourth stream are supported under certain settings.
Video Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline Profile,Main Profile,High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR,VBR
Scalable Video Coding (SVC): H.264 and H.265 encoding
Region of Interest (ROI): 5 fixed regions for main stream and sub-stream
Target Cropping: Yes
Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering: Yes
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP
Simultaneous Live View: Up to 6 channels
API: Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/Host: Up to 32 users3 user levels: administrator, operator, and user
Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client: iVMS-4200,Hik-Connect,Hik-Central
Web Browser: Plug-in required live view: IE 10, IE 11,Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch: Yes
Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switch: Day,Night,Auto,Schedule
Wide Dynamic Range (WDR): 130 dB
Image Enhancement: BLC,HLC,3D DNR,Defog
SNR: ≥ 52 dB
Privacy Mask: 4 rectangular privacy masks
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone: -U: Yes, 2 built-in microphones
Audio: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm: 2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
Reset Key: Yes
Power Output: 12 VDC, max. 100 mA
Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Smart Event: Unattended baggage detection,object removal detection, scene change detection,audio exception detection,defocus detection
Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,trigger alarm output,audible warning
Face Capture: Yes
People Counting: Yes
Perimeter Protection: Line crossing detection, intrusion detection, region entrance detection, region exiting detection,Support alarm triggered by specified target types (human and vehicle)
Power: 12 VDC ± 25%, 1.0 A, max. 12 W,Ø5.5 mm coaxial power plug,reverse polarity protection,PoE: IEEE 802.3at, Class 4, max. 14 W
Material: Metal
Dimension: Ø141 mm × 112 mm (Ø5.6" × 4.4")
Package Dimension: 244 mm × 174 mm × 173 mm (9.6" × 6.9" × 6.8")
With Package Weight: Approx. 1200 g (2.6 lb.)
General Function: Heartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter
Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
EMC: CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,RCM: AS/NZS CISPR 32: 2015,IC: ICES-003: Issue 7
Safety: UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017
Environment: CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU
Protection: IP67: IEC 60529-2013,IK10: IEC 62262:2002
Type: 4 MP
Warranty
Warranty: 3 Years
