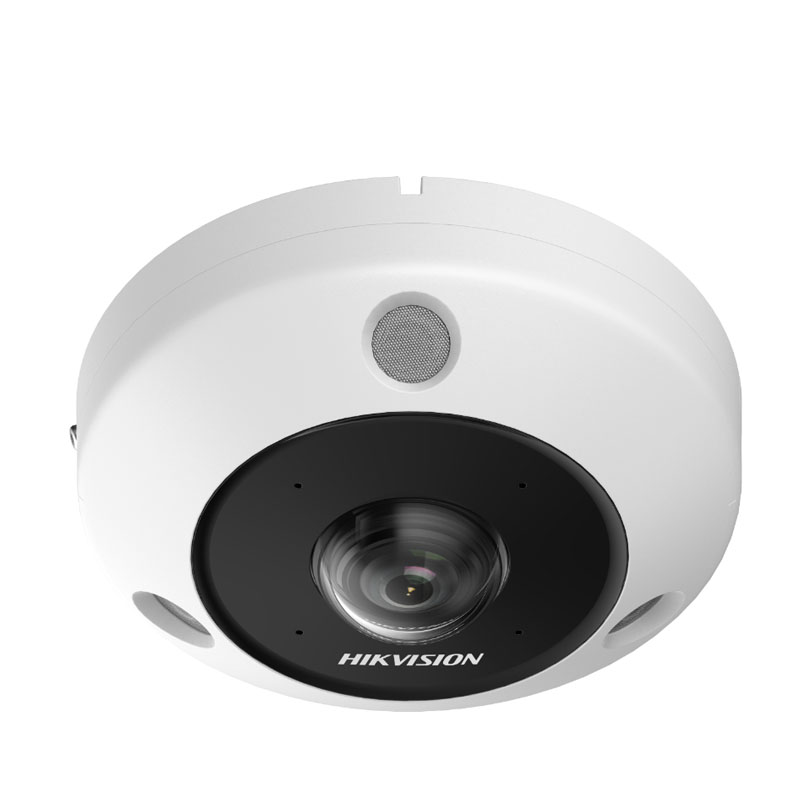

Hikvision DS-2CD63C5G1-IVS 12MP DeepinView Fisheye IP Camera

-Heatmap: based on deep learning algorithms, the camera counts people and presents an intuitive map -Multi dewarping modes: the image can be dewarped to normal image for viewing intuitively -Built-in mic and speaker: the camera supports two-way audio for real-time audio security monitoring and communication -Built-in IR light: an IR range of 15 meters provides good visibility in low or even zero-light environments -High resolution 12 MP: capturing clear images even when dewarped into 4-image PTZ mode -Each image is clear and detailed -Panomorph lens RPL: 89VVT -Water and dust resistant (IP67) and vandal resistant (IK10) Camera Image Sensor 1/1.8" Progressive Scan CMOS Max. Resolution 3504 × 3504 Min. Illumination Color: 0.03 Lux @ (F2.2, AGC ON),B/W: 0.006 Lux @ (F2.2, AGC ON),B/W: 0 Lux with IR Shutter Time 1 s to 1/100,000 s Day & Night IR cut filter Lens Lens Type Fixed focal lens, 1.29 mm Focal Length & FOV 1.29 mm, horizontal FOV 180°, vertical FOV 180° Iris Type Fixed Aperture F2.2 Depth of Field 0.2 m to ∞ DORI DORI D: 27.9 m O: 11.1 m R: 5.6 m I: 2.8 m Illuminator Supplement Light Type IR Supplement Light Range Up to 15 m Supplement Light Number 3 IR Wavelength 850 nm Smart Supplement Light Yes HEOP Open Resources Memory: 60 MB, Smart RAM: 800 MB, eMMC: 2 GB Computing Power 2 TOPS Open Capability HEOP 2.0 OpendevSDK Deep Learning Structure Caffe,TensorFlow,PyTorch Programming Language C,C++ Video Main Stream 50 Hz: 25 fps/60 Hz: 30 fps: Fisheye View: 3504 × 3504, 3024 × 3024, 2560 × 2560, 2048 × 2048 180 Panorama View: 3072 × 2304, 2048 × 1536 180 Dual Channel Panorama View: 3072 × 1152 Panorama View: 3072 × 2304, 2048 × 1536 4PTZ View: camera 01/camera 02/camera 03/camera 04: 1600 × 1200 Fisheye + 3PTZ View: camera 01: 2560 × 2560, 2048 × 2048, 1280 × 1280 camera 02/camera 03/camera 04: 1600 × 1200 4PTZ Fusion View: 3200 × 2400, 2048 × 1536 Sub-Stream 50 Hz: 25 fps/60 Hz: 30 fps: Fisheye View: 720 × 720, 480 × 480 180 Panorama View: 640 × 480, 320 × 240 180 Dual Channel Panorama View: 640 × 480, 320 × 240 Panorama View: 640 × 360, 320 × 240 4PTZ View: camera 01/camera 02/camera 03/camera 04: 640 × 480, 320 × 240 Fisheye + 3PTZ View: camera 01: 720 × 720 camera 02/camera 03/camera 04: 640 × 480, 320 × 240 Video Compression Main stream: H.265+/H.265/H.264+/ H.264, Sub-stream: H.265/H.264/MJPEG Video Bit Rate 32 Kbps to 16 Mbps H.264 Type Baseline Profile,Main Profile,High Profile H.265 Type Main Profile Bit Rate Control CBR,VBR Scalable Video Coding (SVC) H.264 and H.265 encoding Region of Interest (ROI) 4 fixed regions for each stream Fisheye Display Mount Type Support wall/table/ceiling mounting Decoding Mode Support hardware decoding and software decoding Display Mode 20 display modes in total, Software decoding: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, hemisphere, AR hemisphere, cylinder, Hardware de
