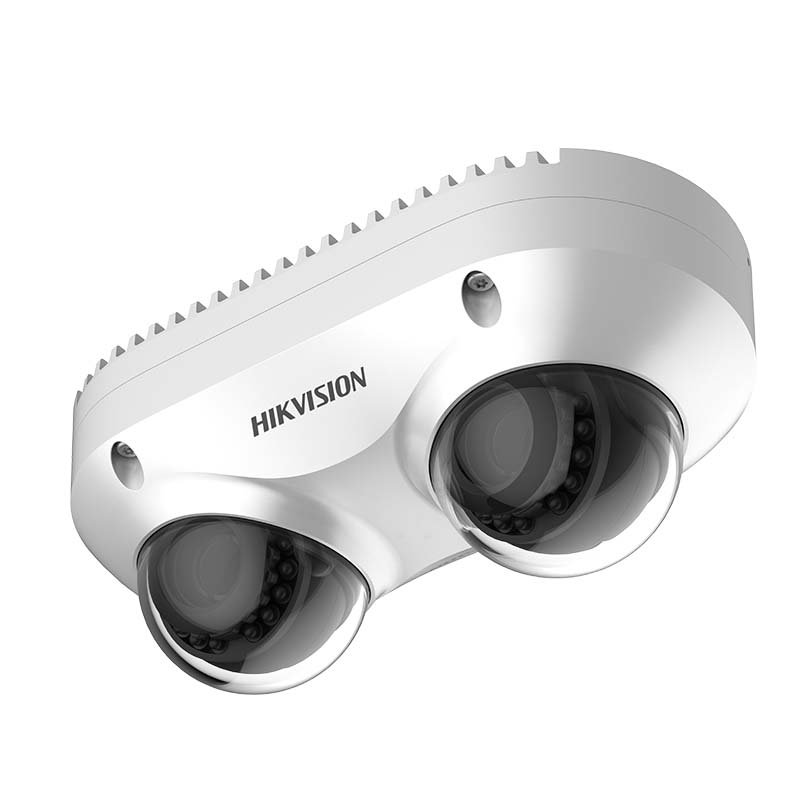

Hikvision DS-2CD6D42G0-IS 4MP Dual-Directional PanoVu Camera
Log in to view MSRP and wholesale pricing.
Description
Image Sensor: 1.3" Progressive Scan CMOS
Max. Resolution: 2688 x 1520
Min. Illumination: Color: 0.005 Lux @ (F1.2, AGC ON),B/W: 0.001 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
Shutter Time: 1 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: -90deg to 90deg,tilt: 0 to 60deg (2.8 mm),0 to 70deg (4/6 mm),rotate: 0deg to 355deg
Focal Length & FOV: 2.8 mm, horizontal FOV 98.2deg, vertical FOV 54.2deg, diagonal FOV 114.6deg4 mm, horizontal FOV 78.8deg, vertical FOV 40.5deg, diagonal FOV 93.9deg6 mm, horizontal FOV 49.1deg, vertical FOV 26.3deg, diagonal FOV 57.2deg
Lens Mount: M12
Aperture: F1.6
DORI
DORI: 2.8 mm: D: 61.1 m, O: 24.2 m, R: 12.2 m, I: 6.1 m4 mm: D: 85.4 m, O: 33.9 m, R: 17.1 m, I: 8.5 m6 mm: D: 128.0 m, O: 50.8 m, R: 25.6 m, I: 12.8 m
Supplement Light Type: IR
Supplement Light Range: Up to 10 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm
Main Stream: 50 Hz: 25 fps (2688 x 1520, 2560 x 1440, 1920 x 1080, 1280 x 720)60 Hz: 24 fps (2688 x 1520, 2560 x 1440, 1920 x 1080, 1280 x 720)
Sub-Stream: 50 Hz: 25 fps (704 x 576, 640 x 480)60 Hz: 24 fps (704 x 480, 640 x 480)
Third Stream: 50 Hz: 25 fps (1920 x 1080, 1280 x 720, 704 x 576, 640 x 480)60 Hz: 24 fps (1920 x 1080, 1280 x 720, 704 x 480, 640 x 480)
Video Compression: Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
Video Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline Profile,Main Profile,High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR,VBR
Scalable Video Coding (SVC): H.264 and H.265 encoding
Region of Interest (ROI): 4 fixed region(s) for each stream
Target Cropping: Yes
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering: Yes
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
Simultaneous Live View: Up to 20 channels
API: Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/Host: Up to 32 users3 user levels: administrator, operator, and user
Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client: iVMS-4200,Hik-Connect
Web Browser: Plug-in required live view: IE 11,Plug-in free live view: Safari 12+,Local service: Chrome 57.0+, Firefox 52.0+,Not recommended: Safari 11+, Edge
Image Parameters Switch: Yes
Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser
Day/Night Switch: Day,Night,Auto,Schedule,Alarm Trigger
Wide Dynamic Range (WDR): 120 dB
Image Enhancement: BLC,HLC,3D DNR,Defog
Privacy Mask: 8 programmable polygon privacy masks
Picture Overlay: LOGO picture can be overlaid on video with 128 x 128 24 bit bmp format.
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Built-in Microphone: 2 built-in microphone(s)
Audio: 1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KO, interface type: non-equilibrium,1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 O, interface type: non-equilibrium, mono sound
Alarm: 1 input(s), 1 output(s) (max. 36 VDC, 30 mA)
RS-485: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Key: Yes
Basic Event: Motion detection,video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full,HDD error,abnormal reboot,alarm input and output,video quality diagnosis
Smart Event: scene change detection,audio exception detection,defocus detection
Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture
Power: 12 VDC +- 20%, 0.58 A, max. 7.0 W,O5.5 mm coaxial power plug,reverse polarity protection,PoE: 802.3af, Type 1, Class 3, 36 V to 57 V, 0.25 A to 0.16 A, max. 9.0 W
Dimension: 164.3 mm x 84.6 mm x 67.4 mm (6.5" x 3.3" x 2.7")
Package Dimension: 227 mm x 172 mm x 125 mm (8.9" x 6.8" x 4.9")
With Package Weight: Approx. 1053 g (2.3 lb.)
Storage Conditions: -40 degC to 60 degC (-40 degF to 140 degF). Humidity 95% or less (non-condensing)
Startup and Operating Conditions: -30 degC to 60 degC (-22 degF to 140 degF). Humidity 95% or less (non-condensing)
Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function: Heartbeat,mirror,flash log,password reset via email,password protection,one-key reset,anti-banding
EMC: FCC: 47 CFR Part 15, Subpart B,CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,RCM: AS/NZS CISPR 32: 2015,IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015
Safety: UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,LOA: IEC/EN 60950-1
Environment: CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
Protection: IP67: IEC 60529-2013,IK10: IEC 62262:2002
Type: 4 MP
Warranty
Warranty: 3 Years
