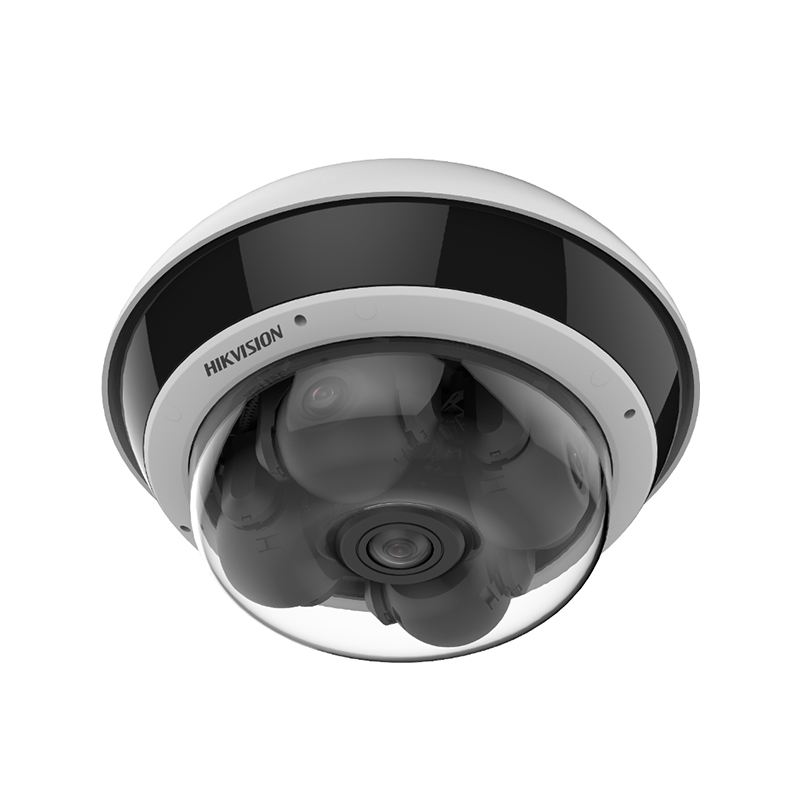

Hikvision DS-2CD6D55G2-IZHS 5-Directional Multisensor 360° IP Camera
Log in to view MSRP and wholesale pricing.
Description
Image Sensor: Varifocal: 1/2.4" Progressive Scan CMOS; Fixed: 1/2.5" Progressive Scan CMOS
Max. Resolution: 2560 × 1920
Min. Illumination: Color: 0.005 Lux @ (F1.2, AGC ON),B/W: 0.002 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
Shutter Time: 1 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 350°,tilt: 0° to 90°,rotate: -90° to 90°
Lens Type: Varifocal lens, motorized lens, 2.8 to 8 mm,Fixed focal lens, 2 mm
Focal Length & FOV: Varifocal :2.8 to 8 mm, horizontal FOV 96.5° to 48.9°, vertical FOV 69.9° to 36.5°, diagonal FOV 129° to 61.3°Fixed:2mm, horizontal FOV 71.68°, vertical FOV 71.68°, diagonal FOV 99.16°
Lens Mount: Ø14
Focus: Varifocal: Semi-auto,Manual
Aperture: Varifocal: F1.9; Fixed: F2.25
Supplement Light Type: IR
Supplement Light Range: Up to 30 m
IR Wavelength: 850 nm
Main Stream: Channel 1,2,3,4:50 Hz: 25 fps (2560× 1920, 2048× 1536, 1920 × 1080, 1280 × 720)60 Hz: 30 fps (2560× 1920, 2048× 1536, 1920 × 1080, 1280 × 720)Channel 5:50 Hz: 25 fps (1440× 1440)60 Hz: 30 fps (1440× 1440)
Sub-Stream: Channel 1,2,3,4:50 Hz: 25 fps (704 × 576, 640 × 480)60 Hz: 30 fps (704 × 480, 640 × 480)Channel 5:50 Hz: 25 fps (576× 576, 480× 480)60 Hz: 30 fps (576× 576, 480× 480)
Third Stream: Channel 1,2,3,4:50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
Video Compression: Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
Video Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline Profile,Main Profile,High Profile
H.265 Type: Main Profile
Scalable Video Coding (SVC): H.264 and H.265 encoding
Region of Interest (ROI): 4 fixed regions for each stream
Target Cropping: Yes
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering: Yes
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, WebSocket, WebSockets, SSL/TLS
Simultaneous Live View: Up to 20 channels
API: Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/Host: Up to 32 users3 user levels: administrator, operator, and user
Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface
Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client: iVMS-4200,Hik-Connect
Web Browser: Plug-in required live view: IE 10, IE 11,Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,AGC,white balance,adjustable by client software or web browser
Day/Night Switch: Day,Night,Auto,Schedule,Alarm Trigger
Wide Dynamic Range (WDR): 120 dB
SNR: ≥ 52 dB
Image Stabilization: EIS
Image Enhancement: BLC,HLC,3D DNR,Defog
Privacy Mask: 8 programmable polygon privacy masks
Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
Ethernet Interface: 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
Audio: 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm: 2 inputs, 2 outputs (max. 24 VDC, 1 A)
RS-485: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Key: Yes
Basic Event: Motion detection,video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full,HDD error
Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)),scene change detection, unattended baggage detection,object removal detection
Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture
Perimeter Protection: Line crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)
Power: 12 VDC ± 20%, 1.8 A, max. 21.6 W,PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.58 A to 0.43 A, max. 25 W
Dimension: Ø290 mm × 148 mm (Ø11.42" × 5.8")
Package Dimension: 453 mm × 393 mm × 385 mm (17.8" × 15.47" × 15.16")
With Package Weight: Approx. 8.0 kg (17.63 lb.)
Storage Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function: Heartbeat,flash log,password reset via email,pixel counter,password protection,one-key reset,anti-banding
EMC: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN 50121-4: 2016+A1:2019,RCM: AS/NZS CISPR 32: 2015,IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015
Safety: CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment: CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
Protection: IP67: IEC 60529-2013,IK10: IEC 62262:2002
Anti-Corrosion Protection: NEMA 4X (NEMA 250-2018)
Type: 5 MP
Warranty
Warranty: 3 Years
