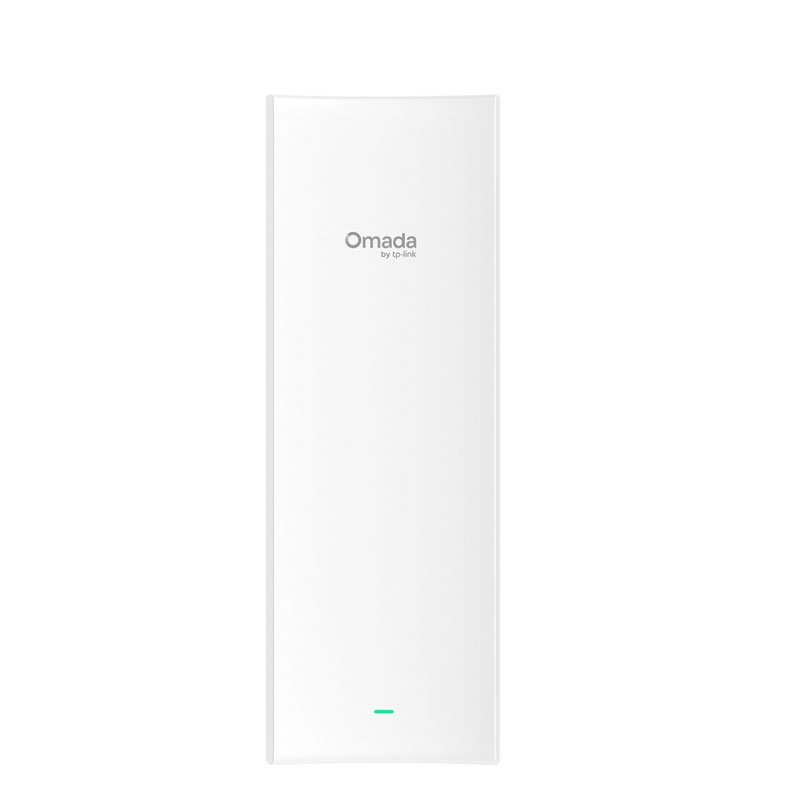

TPLINK SECTOR BRIDGE 5 Omada 5 GHz 867 Mbps Scalable Central Hub for Long-Range Indoor/Outdoor Connectivity

Supports up to 32 Flex Bridges via TDMA: Enables scalable multipoint networks across multiple buildings or remote endpoints.* 120° Wide Beamwidth for Multipoint Hub Deployment: Deliver extensive, high-quality wireless coverage for wide-area deployments. 3.1 mi (5 km) Long-Range 5 GHz Connectivity: Delivers dependable 867 Mbps speeds via powerful 16 dBi dual-polarized directional antennas.‡ DIP Switches for Simple Pairing: Reduces configuration and deployment complexity. Easy & Versatile Installation: Supports wall or pole installations, with a built-in bubble level and a ball-joint mount for accurate adjustment. Designed for Outdoor Durability & Reliability: Features an IP66 weatherproof enclosure, 6kV lightning protection, and an operating range of -40 °C to +70 °C.** App-Guided Alignment: Visual alignment guidance and instant speed testing simplify long distance setups and verify performance. Flexible Power Supply: Supports 802.3af PoE, 24V Passive PoE (adapter included), and 12V DC. Remote Monitoring with Standalone & SDN Management: Standalone mode or Omada SDN mode enables remote centralized management via Web UI or app.† HARDWARE FEATURES Interface 1× Gigabit Ethernet Port Button Reset DIP Switch Pairing Code Switch Power Supply • 12V DC/1A• 802.3af PoE• 24V Passive PoE (Passive PoE Adapter Included - For Dry Indoor Use Only) Max. Power Consumption DC: 9W PoE: 10.5W Dimensions ( W x D x H ) 14.1 × 4.9 × 2.8 in (358.5 × 124.6 × 70.5 mm) Antenna • 2.4 GHz: 1 × 4 dBi (peak gain), internal omnidirectional antennas • 5 GHz: 2 × 16 dBi (peak gain), internal directional antennas • Beamwidth: Horizontal 120°, Vertical 13° Weatherproof Enclosure IP66 Mounting Pole and wall mounting (Kits included) Management Features Omada App Yes Restore & Backup Yes Firmware update via Web Yes NTP Yes Centralized Management • Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller Cloud Access Yes. Require the use of an Omada Controller. Email Alerts Yes LED ON/OFF Control Yes SNMP Yes SSH Yes Web-based Management Yes Zero-Touch Provisioning Yes WIRELESS FEATURES PtP Yes PtMP 32 Maximum Transmission Distance 3.1 mi (5,000 m) Wireless Standards IEEE 802.11a/b/g/n/ac Frequency • 2.4 GHz (Device Management Only)• 5 GHz Signal Rate 5 GHz: Up to 867 Mbps Wireless Functions • MU-MIMO: 5G 2x2 MU-MIMO DL • Wireless Statistics• Reboot Schedule• RADIUS Accounting• Static IP/Dynamic IP• Rate Limit• Enable/Disable Wireless Radio• Enable/Disable SSID Broadcast Wireless Security • VLAN• Rogue AP Detection• WPA/WPA2 Transmission Power • CE: 6-23 dBm (5 GHz, U-NII-1 & U-NII-2A, EIRP)6-30 dBm (5 GHz, U-NII-2C, EIRP)• FCC: 4-23 dBm (5 GHz, U-NII-1)4-25 dBm (5 GHz, U-NII-3) OTHERS Certification CE, FCC, RoHS Package Content • Sector Bridge 5• Installation Guide• Mounting Kit• Passive PoE Adapter• Power Cord Lightning Protection • Air discharge: ±8kV• Contact discharge: ±4kV• Common mode 10/700: ±6kV Environment • Operating Temperature: -40 °C–70 °C (-40 °F
