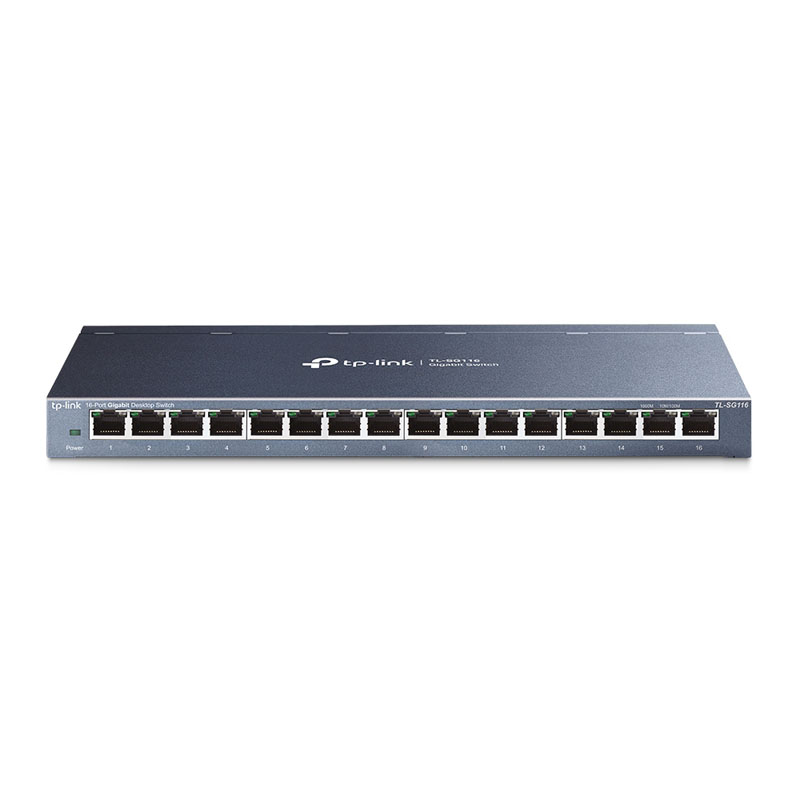

TP-Link TL-SG116 16 Port Gigabit Desktop Switch 16 10/100/1000Mbps RJ45 ports
Log in to view MSRP and wholesale pricing.
Description
HARDWARE FEATURES
Standards and Protocols: IEEE 802.3i /802.3u /802.3ab /802.3x /802.1p
Interface: 16 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity: Fanless
Physical Security Lock: Yes
Power Consumption: Maximum: 10.0W
External Power Supply: External Power Adapter (Output: 12VDC / 1.0A)
LED Indicator: System PowerLink/Act indicators per port built into each RJ-45 port
Dimensions ( W x D x H ): 11.26 x 4.4 x 1.0 in. (286*111.7*25.4 mm)
Max Power Consumption: 10W(220V/50Hz)
Max Heat Dissipation: 34.12BTU/h
PERFORMANCE
Packet Forwarding Rate: 23.8Mpps
MAC Address Table: 8K
Packet Buffer Memory: 4.1Mb
Jumbo Frame: 10KB
SOFTWARE FEATURES
Advanced Features: Green Technology802.3X Flow Control802.1p/DSCP QoSIGMP Snooping
Transfer Method: Store and Forward
OTHERS
Certification: CE, FCC ,RoHS
Package Contents: 16-Port 10/100/1000Mbps Desktop SwitchPower AdapterInstallation GuideRubber Feet
Environment: Operating Temperature: 0°C~40°C (32°F~104°F)Storage Temperature: -40°C~70°C (-40°F~158°F)Operating Humidity: 10% ~ 90%, non-condensingStorage Humidity: 5%~90% non-condensing
Features: 16 ports
Type: Non PoE
Warranty
Warranty: Limited Lifetime
